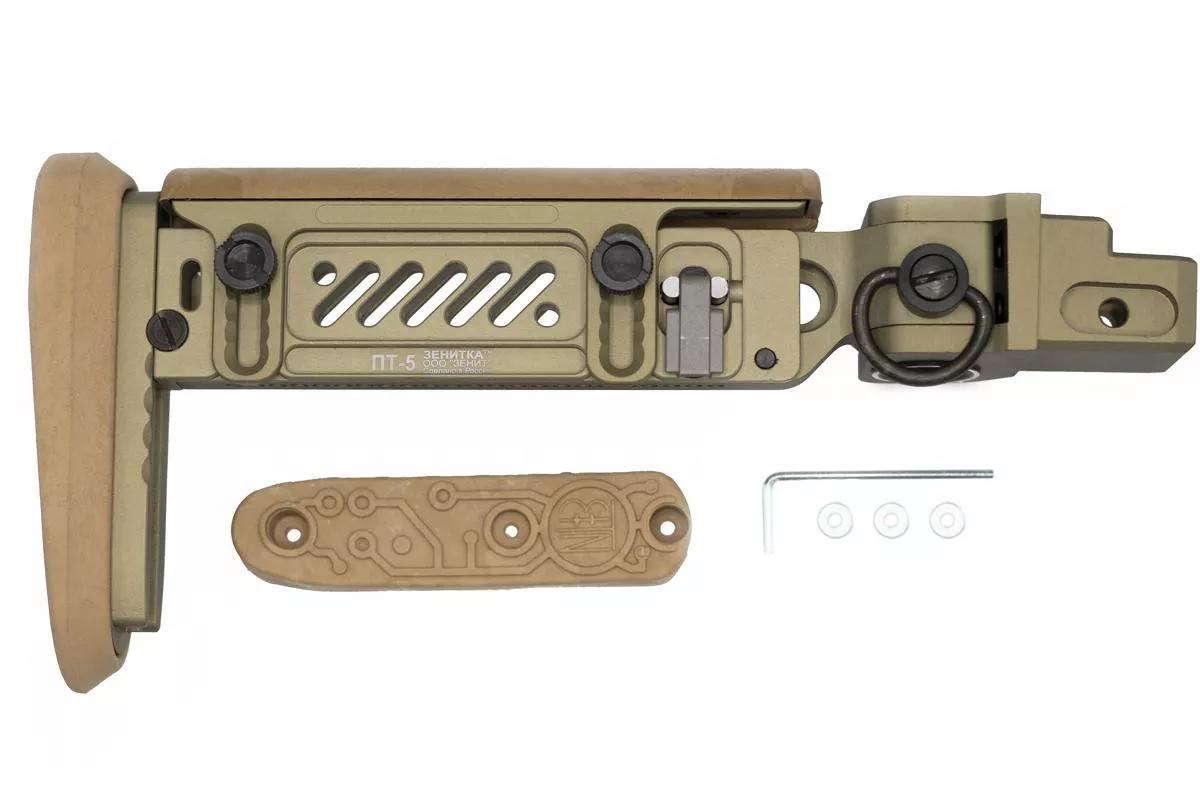

Zenitco PT-5 AKM Buttstock

Zenitco PT-5 AKM Buttstock

Original price was: $139.19.Current price is: $102.07.

39 in stock

SKU: 67205 Category:

Description

The all-milled telescopic stock of the skeletal type “PT-5” with a rubber back and a rubber cheek pad is designed for installation and operation on AKM.The telescopic stock  “PT-5” is installed on a regular place of AKM stocks folding in the side.Allows you to make adjustments based on tasks and individual physique of shooter.Operational Benefits:

  • no modification of the weapon is required during installation
  • the presence of an adjustable cheek and an adjustable back
  • the telescopic mechanism has a wide range of length adjustments
  • the original mechanism allows you to fold and fix the butt along the receiver of the weapon in any position of the telescopic mechanism, as well as adjust the height of the cheek and the height of the back of the
  • when folding, there is no need to remove the rail above the receiver  “B-13” located on the side rail (dovetail) of the weapon receiver
  • in the lower position of the cheeks allows you to work with a mechanical sight
  • two variants rubber cover for back of the stock : wide, narrow
  • two  slingmount options

 Material :  D16T alloy coated in black or desert color.Weight: 600 ± 10 (in the delivery assembly: wide rubber pad and two swivels)Overall dimensions: (261/361 x 121/142 x 49)Operating temperature range: from -50 ° С to + 50 ° СWarranty period of storage and operation: 60 months.

To install the telescopic stock ” PT-5″ ( hereinafter referred to as PT-5 ) on a weapon it is necessary:

  • PT-5 is installed instead of the standard AKM butt (folding sideways along the receiver)
  • Unscrew the fixing screws of the standard stock and remove it from the seat
  • Insert the PT-5 into the AKM and tighten the mounting screws
  • To fold the PT-5, it is necessary to press the button and, by turning around the axis, fold the stock until it locks
  • To unfold the PT-5, it is necessary to press the button and, by turning, spread the stock until it locks
  • To adjust the length of the butt, raise the locking lever and set the required length of the PT-5
  • After setting the required length of the PT-5, lower the locking lever, fixing the set length of the PT-5
  • To set the desired height of the cheek is necessary: loosen the screws and set the cheek to the required height tighten the screws, lock the cheek at the selected height
  • To set the desired recoil pad height: loosen the screw and set the back plate to the required height tighten the screw, fix the recoil pad at the selected height
  • Install the necessary rubber pad on the back of the stock

    • Moving parts of the telescopic butt length adjustment mechanism must be cleaned during maintenance of the weapon.More detailed illustrated instructions are in the instruction manual.
